WW1 Weaponary

Rifles

Rifles
grey bkg new.png

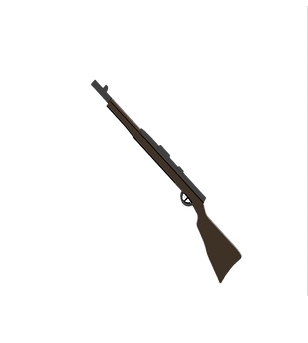

The standard issue rifle was the short magazine Lee Enfield (SMLE). It was the fastest military bolt-action rifle of the day.



A well-trained rifleman could fire 20-30 aimed rounds in 60 seconds. It had a 10 round magazine loaded with 5 round charger clips, and an effective range of 500m

British - Lee Enfield

grey bkg new.png

French - Lebel

The standard issue rifle was the Lebel model 1886 bolt-action rifle.



It was the first military firearm to use smokeless powder ammunition, and had an 8 round tube magazine, with an effective firing range of 400m.

British Lee Enfield
French Lebel
grey bkg new.png

The main German infantry rifle of WW1 was the Gewehr 98 bolt action Mauser rifle. It fired cartridges from a 5 round internal clip-loaded magazine.



British and American manufacturers rapidly adopted its advanced features. The rifle had an effective range of 500m that could be extended to 800m with an optical sight.

German- Mauser

grey bkg new.png

US - Springfield

The Springfiled rifle was the standard front line weapon used by the Americans during the first World War. The rifle was a modified Mauser first adopted in 1903, with a box magazine holding five 0.3inch rounds

Mauser
Springfield

Machine Guns

Machine Gun
grey bkg new.png

British - Vickers

The British Vickers machine gun had a reputation for reliability firing up to 600 rounds of ammunition per minute at targets up to 4000m away.

grey bkg new.png
hotchkiss (white).png

The French Hotchkiss machine gun was developed by the Hotchkiss arms company in France through an improved adaptation of an Austrian design, following the purchase of the patents in 1893.



The gas actuated air-cooled machine gun fired 8mm Lebel cartridges and could fire 450 rounds per minute, 3800m. It used 24 round strips and later 250 round metal belt fed ammunition. This machine gun was later also used by the Americans

French - Hotchkiss

Vickers
Hotchkiss
grey bkg new.png
browning (white).png

US - Browning

The American Browning machine gun was water cooled and capable of firing 450 - 600 rounds per minute, but only entered service in later September 1918.

grey bkg new.png
MG08 (white).png

In the battlefields of WW1, the standard machine gun used by the Germans was the MG08, adapted from the original 1884 Maxim gun.



It could fire 600 rounds of ammunition per minute at targets up to 3600m away

German - MG08

MG08
US

Artillery

Artillery
grey bkg new.png

British - 18 Pounder Field Gun

The Quick Firing (QF) 18 Pounder was the principal Field Gun of the British Army. Its ammunition had the shell combined with the cartridge thus giving it the description of ‘quick firing’.

18 pound scene (white).png

British - Limber

The Limber contained ammunition for the 18 pounder. The two wheeled ammunition limber was hooked up to a team of six horses, while the tail of the gun was hooked to the limber. In this way, both the gun and the ammunition were transported to and from the battlefield.

grey bkg new.png

The French 75mm field gun with the hydraulic recoil mechanism enabled accurate and rapid fire, without the need to reposition the gun after each shot.

75mm gun french scene (white).png

French - 75mm Field Gun

grey bkg new.png
77mm german scene (white).png

German - 77mm Field Gun

The German 77mm field gun was an efficient field gun with a lengthened tube for a greater range.

18 pounder
Limber
French 75mm
German 77mm
